Fibonacci Heap

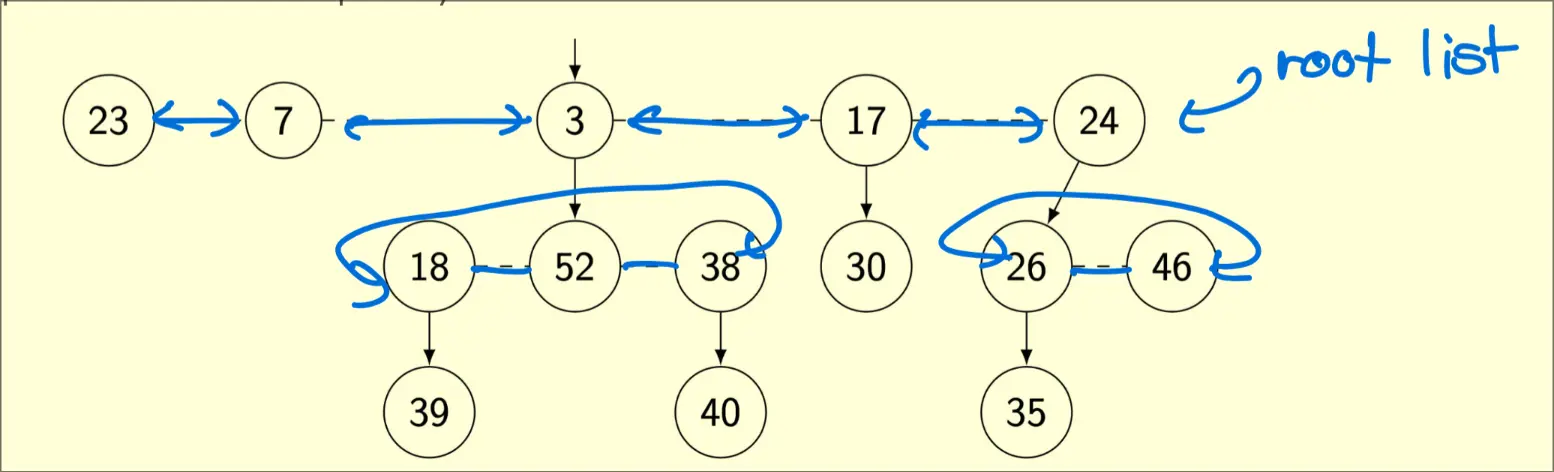

A Heap with the union operation implemented as a Forest of Min-Heap connected by a Double Linked List.

Structure

Node Structure

struct node_structure{
	int key; // used for priority
	struct node_structure* left;
	struct node_structure* right;
	struct node_structure* child; // ptr to one child
	int degree; // number of children
	bool marked; // indicates whether node has lost a child
}

Heap Structure

struct heap_structure{
	std::list<struct node_structure*> roots; // list of roots
	struct node_structure* min; // ptr to root node with minimum key
}

Operations

• insert(H,k): insert key k
• union(H, H1, H2): merge two heaps H1, H2
• decrease-priority(H,key): Decreases the priority of a key
• extract-min(H): Extracts the min of a heap
• consolidate(H): Reorder root list with nodes of unique degree

insert(H,k)

A $O(1)$ operation

insert(H,k):
	new_root := new node(key=k, marked=false)
	add new_root to H.root_list
	if k < H.min.key:
		H.min = new_root

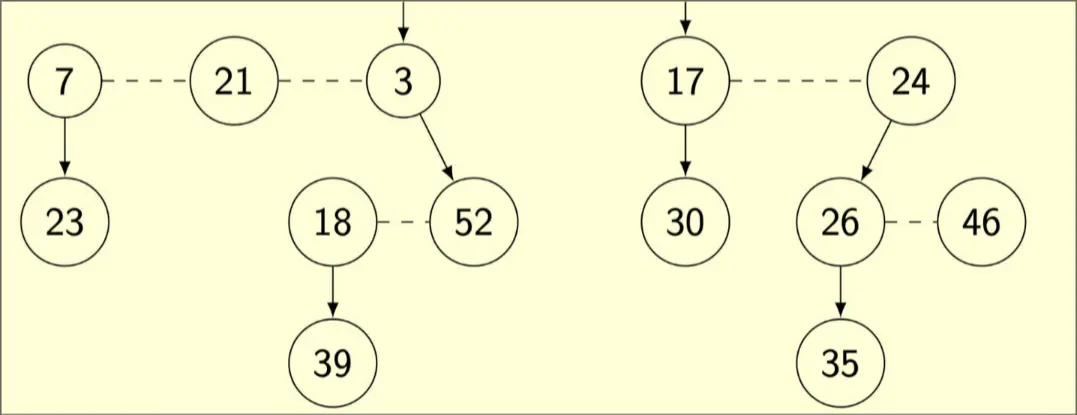

union(H,H_1,H_2)

A $O(1)$ operation

union(H, H1, H2):
	H.root_list := H1.root_list + H2.root_list
	if H1.min.key <= H2.min.key:
		H.min := H1.min
	else:
		H.min := H2.min

extract-min(H)

extract-min(H):
	remove H.min from H.root_list
	add each child of H.min to H.root_list
	H.min := any former child of H.min
	consolidate(H)

consolidate(H)

Attempts to make sure all nodes in the list have a unique degree. Will find nodes that have the same degree and make the larger key a child of the node with the smaller key

consolidate(H):
	for each node n in H.root_list:
		x := n
		while A[x.degree] != null:
			y := A[x.degree]
			A[x.degree] := null
			if x.key > y.key:
				x,y := y, x
			remove y from H.root_list
			make y child of x
			y.marked := false
		A[x.degree] := x
	update H.min

decrease-priority(H)

decrease-priority(H,x,k):
	if k >= x.key: return
	x.key := k
	y := x.parent
	if y != null and y.key > x.key:
		cut(H,x,y)

		// cascading cut
		while y.parent != null:
			if not y.marked:
				y.marked := true
				break
			else:
				cut(H,y,y.parent)
				y := y.parent

		if x.key < H.min.key:
			H.min := x

cut(H,x,y): # remove a node from its parent y and move it to root list
	remove x from children of y
	add x to H.root_list
	x.marked := false
	if x.key < H.min.key:
		H.min := x

Complexity Analysis

Define:

• $t(H)$: number of trees in heap $H$ (nodes in root list)
• $d(H)$: degree of node with maximum heap in heap $H$
• $D(n)$: maximum possible degree of fibonacci heap with $n$ nodes
• $m(H)$: number of marked nodes in heap Then worst-case analysis:
• extract-min() has complexity $O(t(H)+D(n))$
• decrease-priority(n,p) has complexity $O(m(H))$ We can define potential function $\varphi (H)=t(H)+2\ast m(H)$
• Insert changes potential with $△(\varphi )=\varphi (H_i)-\varphi (H_{i-1})=t(H_i)+2\ast m(H_i)-t(H_{i-1})-2\ast m(H_{i-1})=1$
• Then, $a_i=t_i+△(\varphi )=O(1)=\pi$
• Amortized cost of decrease-priority is $O(1)$
• Amortized cost of extract-min is $O(D(n))$ equivalent to $O(\log n)$ Note that:
• $N(d)=fib(d+2)$ - hence the name fibonacci heap
