Disjoint Set Forest Implementation

Using a Forest to create a Disjoint Set

Implementation

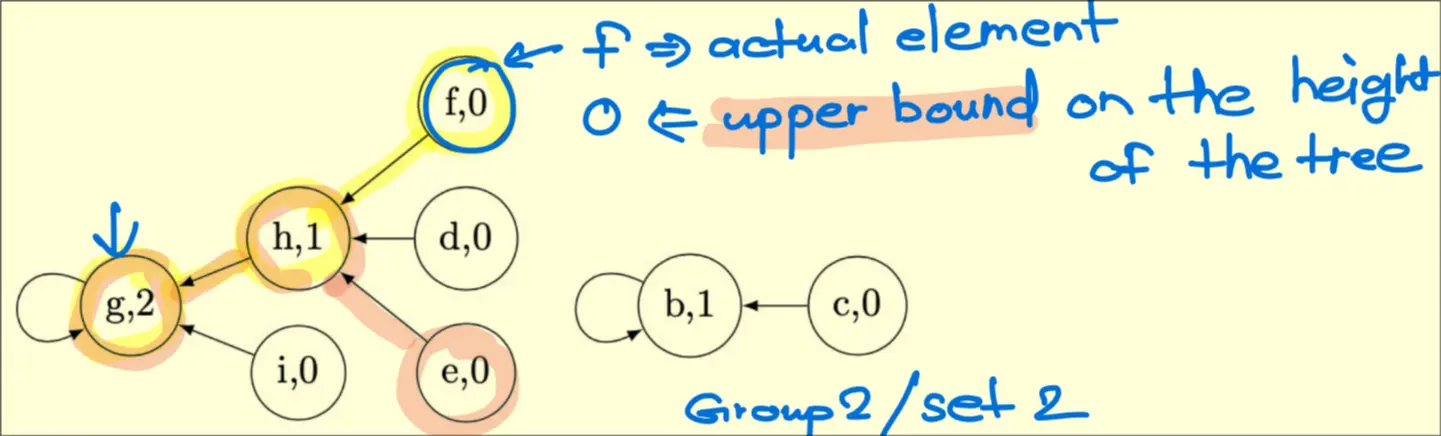

• Each set is a Tree where child leaves have pointers to parents
• The root node points to itself
• Each node stores a rank (upper bound on height of tree rooted at node)

make-set()

Creates a single-node tree.

make-set():
	root := new node(value=x, rank = 0)
	root.parent := root
	return root

union(node1, node2)

With node1 present in one tree and node2 present in another tree, makes the root of the shorter tree a child of the taller tree.

union(node1, node2):
	link(find-set(node1), find-set(node2))
link(root1, root2):
	if root1.rank > root2.rank:
		root2.parent := root1
	else:
		root1.parent := root2
		if root1.rank = root2.rank:
			root2.rank++

find-set(node)

find-set(node):
	if node.parent != node:
		return find-set(node.parent)
	return node

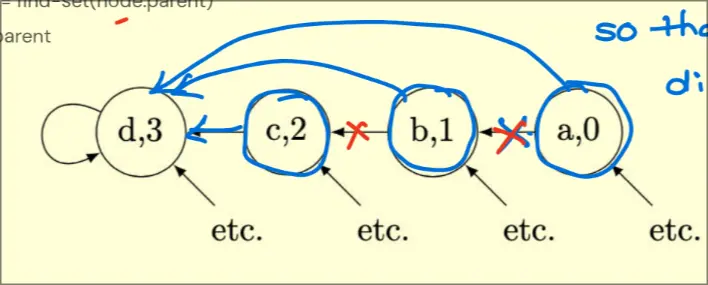

Path Compression Variant

find-set will update the parents of all nodes along the path of the node to the root to point to the root.

Complexity Analysis

• With $n$ as the number of elements
• With $m$ as the number of operations ($m=(\text{number of finds})+(\text{number of unions})$)
• Best disjoint set implementation is forests
• Worse-case for $k$ operations with $n$ make-sets is $O(k\alpha (n))\in O(k{\log }^{\ast }n)$
  • Note that $\alpha (n)$ is the Inverse Ackermann Function
  • ${\log }^{\ast }(n)$ is the number of times you need to apply log to $n$ until answer is $<1$ https://cs.uwaterloo.ca/~r5olivei/courses/2020-fall-cs466/lecture1.pdf
