Testbench

A test for FPGA behavior written in System Verilog. Involves coverage and test cases.

Example Test Bench Creation

1. Create the verilog module:

module andprogram(
    input reg a,
    input reg b,
    output reg c
    );
    assign c = a & b;
endmodule

2. Create the test bench:

`timescale 1ns / 1ps

module andtest();
    logic [1:0] mySW;
    logic myOut;

    andprogram module_under_test(mySW[1], mySW[0], myOut);

    initial begin
        #100 mySW = 2'b00;
        #100 mySW = 2'b01;
        #100 mySW = 2'b10;
        #100 mySW = 2'b11;
    end
endmodule

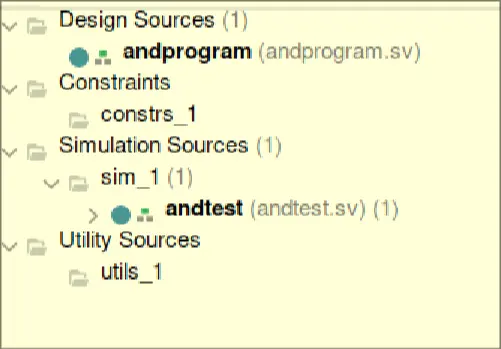

3. Project structure looks like this:

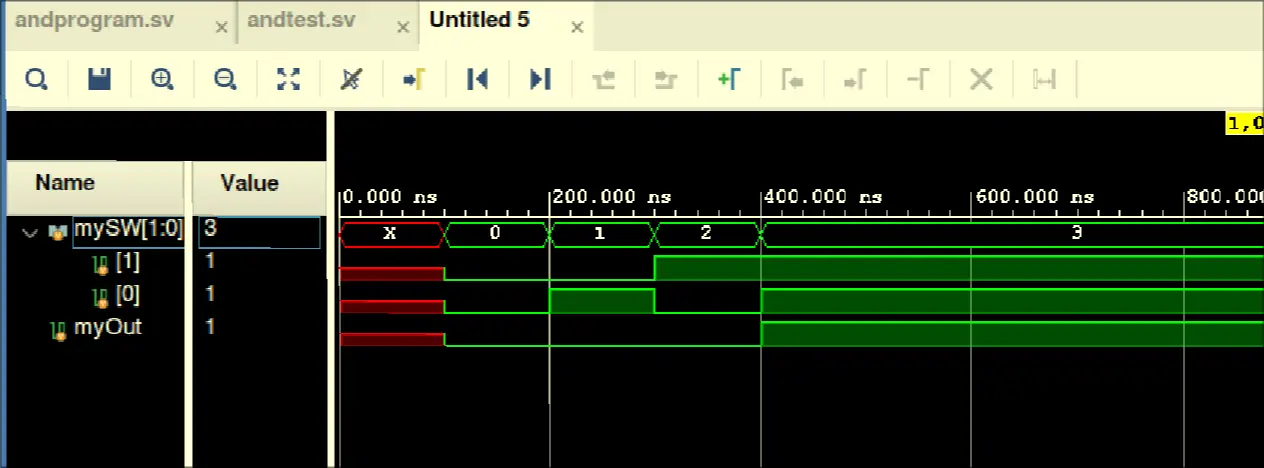

4. Run the Vivado Behavioral Simulation simulation looks:
